8 inch Heavy Duty Caster with Rubber-on-Iron Wheel, 2 inch wide

Roll over image to zoom in Click on image to zoom

8 inch Heavy Duty Caster with Rubber-on-Iron Wheel, 2 inch wide

Name: 8 inch Heavy Duty Caster with Rubber-on-Iron Wheel, 2 inch wide
Brand: Pemco
SKU: 45RIR82S
Price: 32.03 USD
Availability: InStock

Pemco SKU: 45RIR82S
Fastening: 4" x 4-1/2" top plate | Load Capacity: 600 lb
Mount Height: 9.5 in | Swivel Radius: 6.25 in

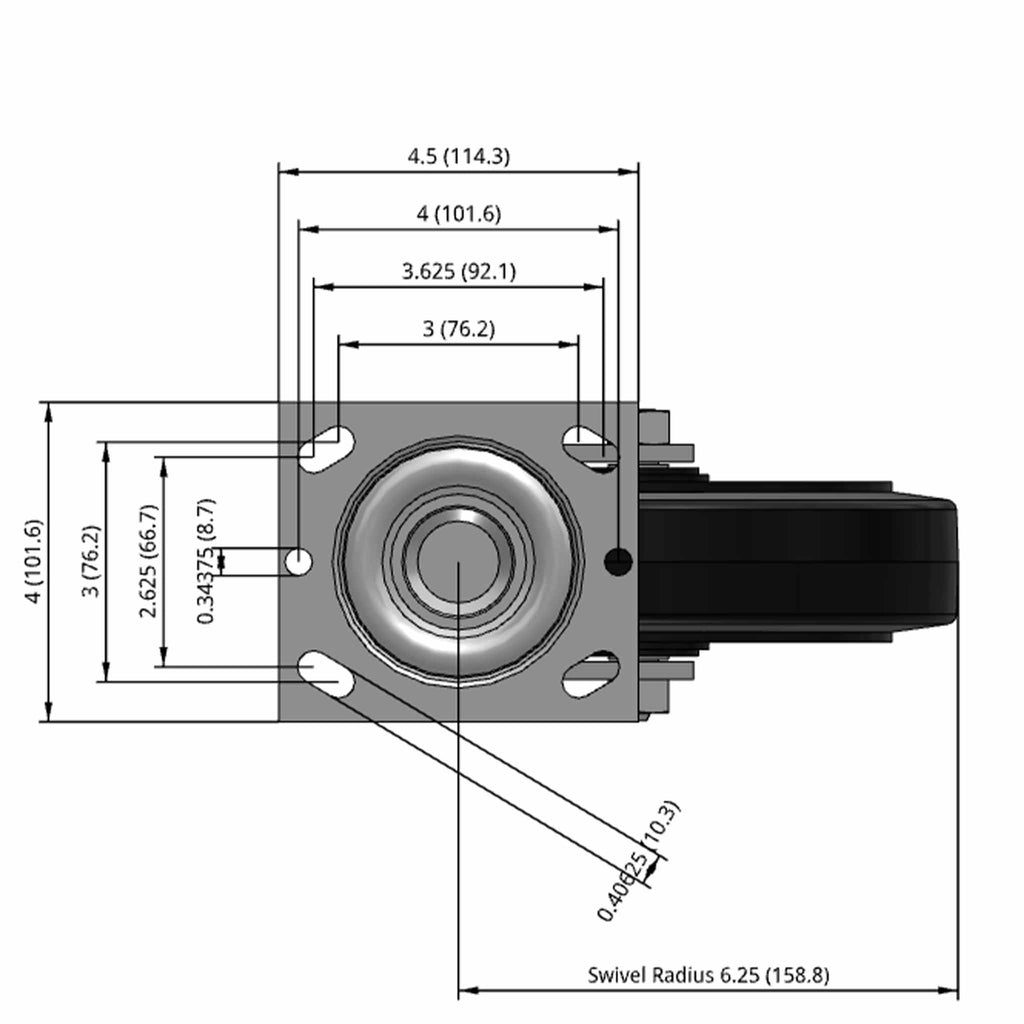

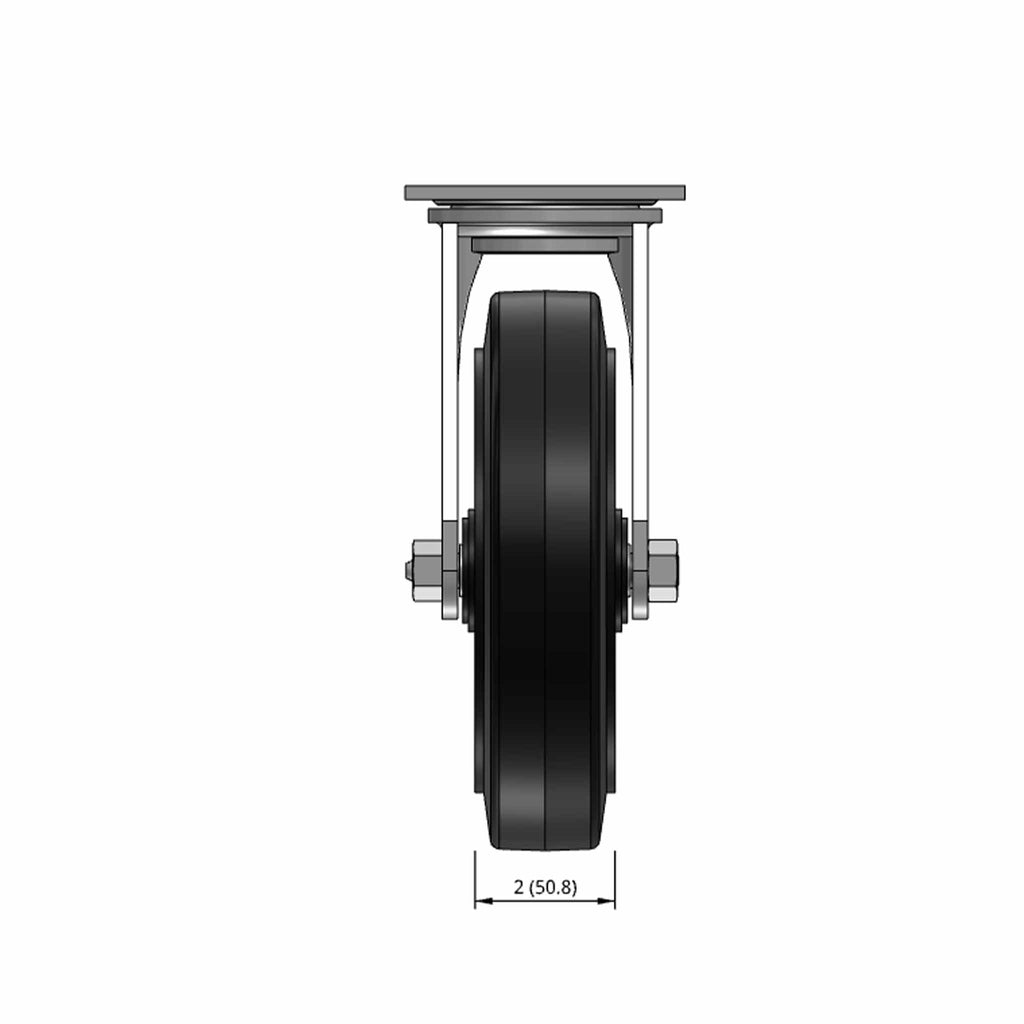

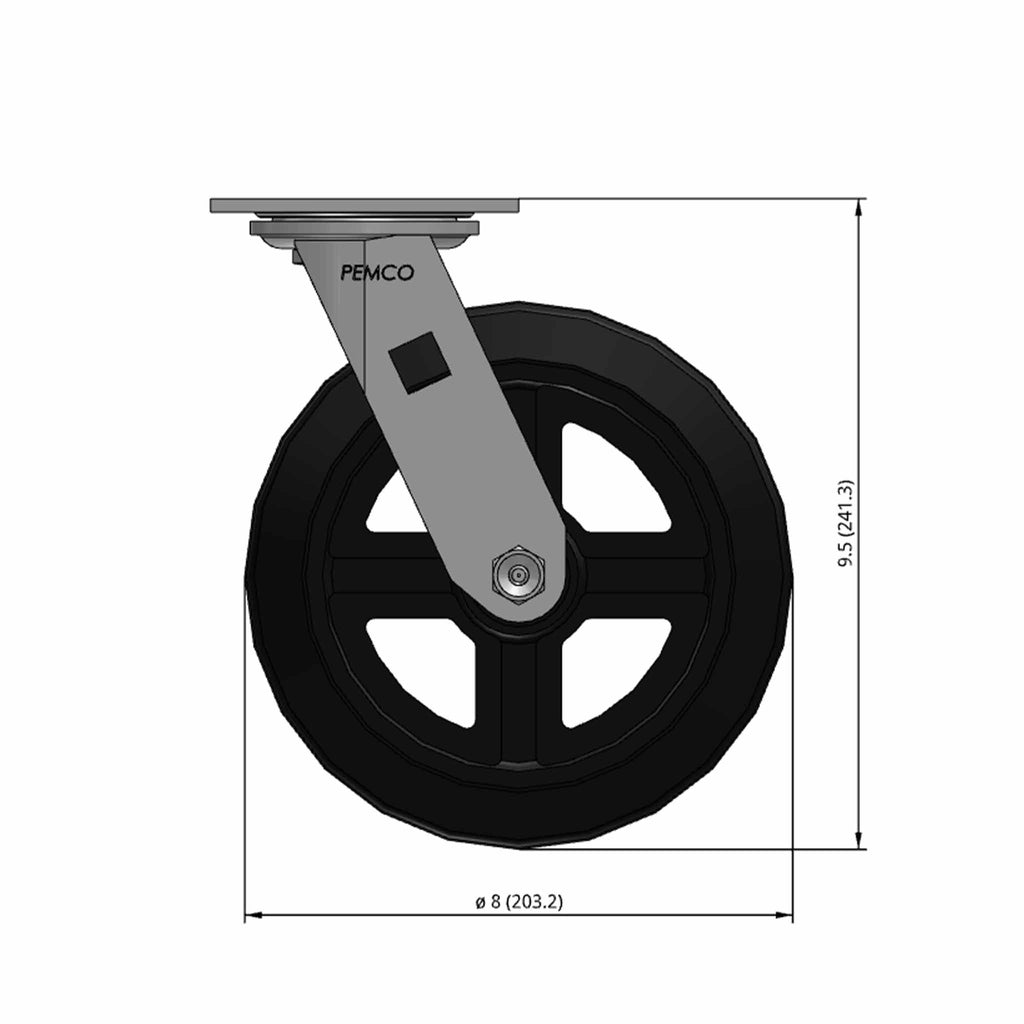

See "Caster Details" and below CAD model for full specs.

• In stock: 24 units ship by next day, larger quantities in 2-5 days (learn more)
**FREE Shipping on orders over $250**

Price:

$32.03

Quantity:

Share this product

This swivel Pemco 8"x2" black rubber-on-iron wheel plate caster is ideal for economical replacements on industrial carts and trucks. We always recommend upgrading to a higher performing rubber wheel that will last much longer (and not cost that much more), like our debris resistant (no more dragging around nails or screws) and more ergonomic Xtra-Soft wheels or standard TPR wheels (both are USA made). This popular line is competitively priced and features: 1/4" thick steel construction, 4"x4.5" top plate, dual ball bearing raceways, welded legs for strength, grease zerks in axle and raceway, RoHS compliant zinc plating for corrosion resistance, and a one-year warranty.

Part Number: 45RIR82S
Series: 45 Series - 2" Wide (to 1250 lb/ea)
Caster Type: Swivel
Brake: None
Load Capacity: 600 lb
Wheel Diameter: 8 in
Wheel Tread Width: 2 in
Wheel Description: Mold-on Rubber
Wheel Color: Black
Wheel Bearing: Roller
Wheel Profile: Flat with Slightly Rounded Edges
Wheel Hardness: 85(+/-5) Shore A
Wheel Thread Guards: None
Raceway Type: Dual Ball Swivel Raceways For Smooth Swivel and Strength
Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"
Mounting Height: 9.5 in
Swivel Radius: 6.25 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

Note: datasheets are provided on our Caster Specialists division template (our sister store).
Use Download CAD (must select file type to enable download) or Download PDF datasheet buttons below to download our secure and native files.
