4 inch Heavy Duty USA TPR Rubber Wheel Brake Caster, 2 inch wide

Roll over image to zoom in Click on image to zoom

4 inch Heavy Duty USA TPR Rubber Wheel Brake Caster, 2 inch wide

Name: 4 inch Heavy Duty USA TPR Rubber Wheel Brake Caster, 2 inch wide
Brand: Pemco
SKU: 45TRR42S-TB
Price: 25.85 USD
Availability: InStock

USA-Made Wheel

Pemco SKU: 45TRR42S-TB
Fastening: 4" x 4-1/2" top plate | Load Capacity: 300 lb
Mount Height: 5.63 in | Swivel Radius: 3.63 in

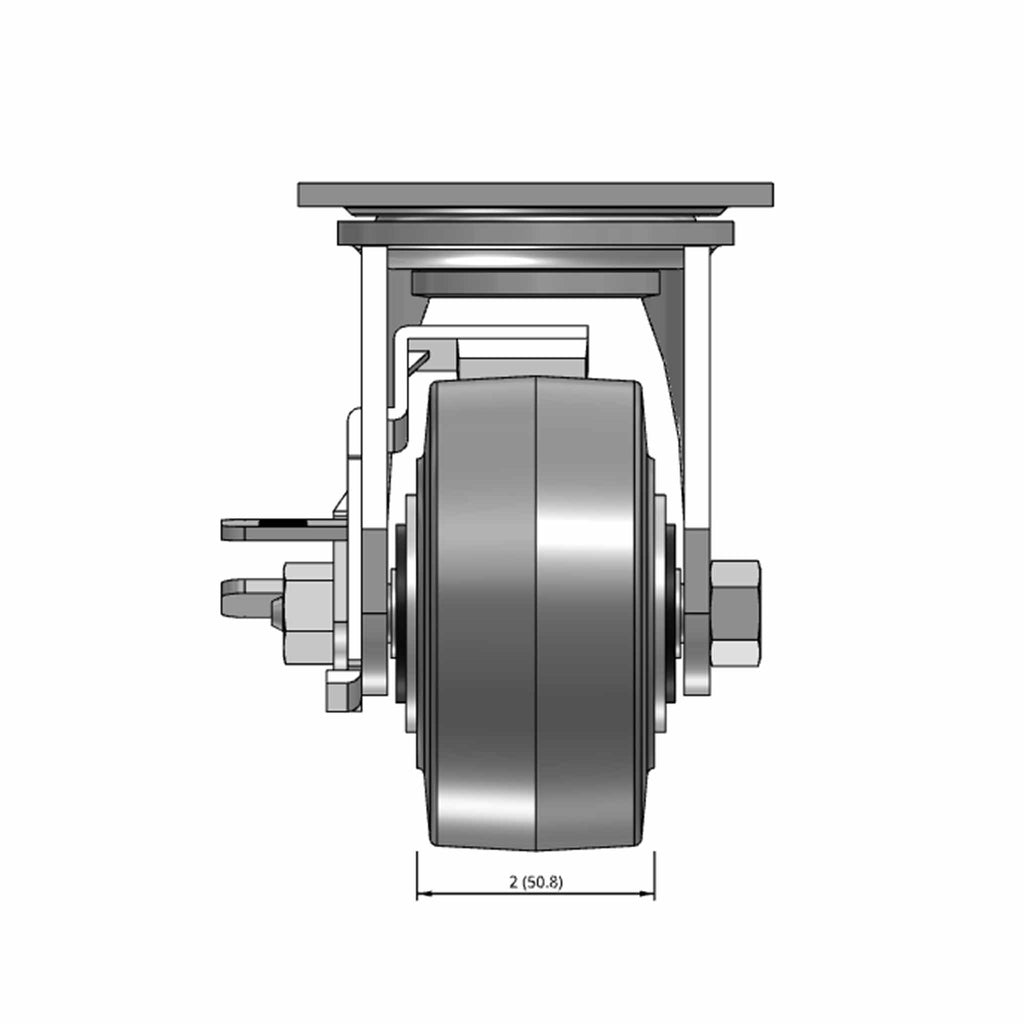

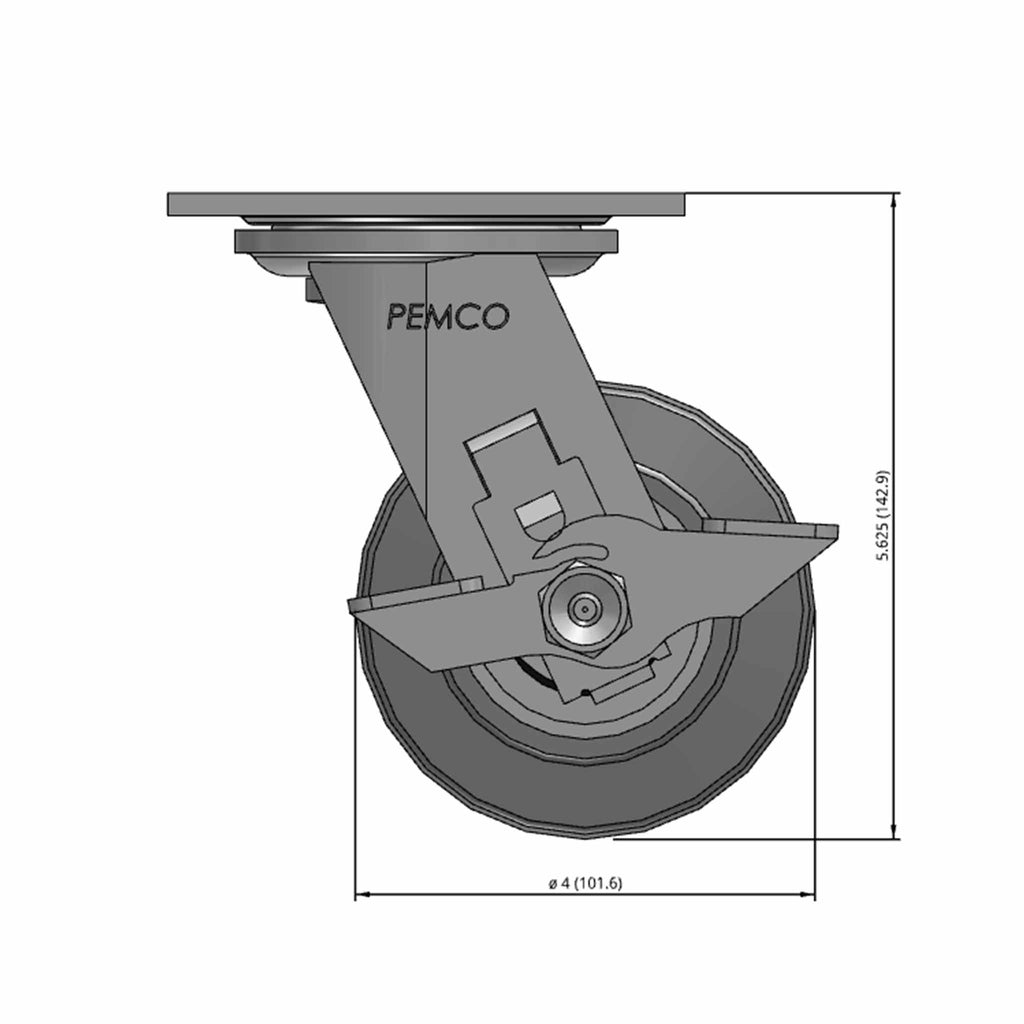

See "Caster Details" and below CAD model for full specs.

• In stock: 24 units ship by next day, larger quantities in 2-5 days (learn more)
**FREE Shipping on orders over $250**

Price:

$25.85

Quantity:

Share this product

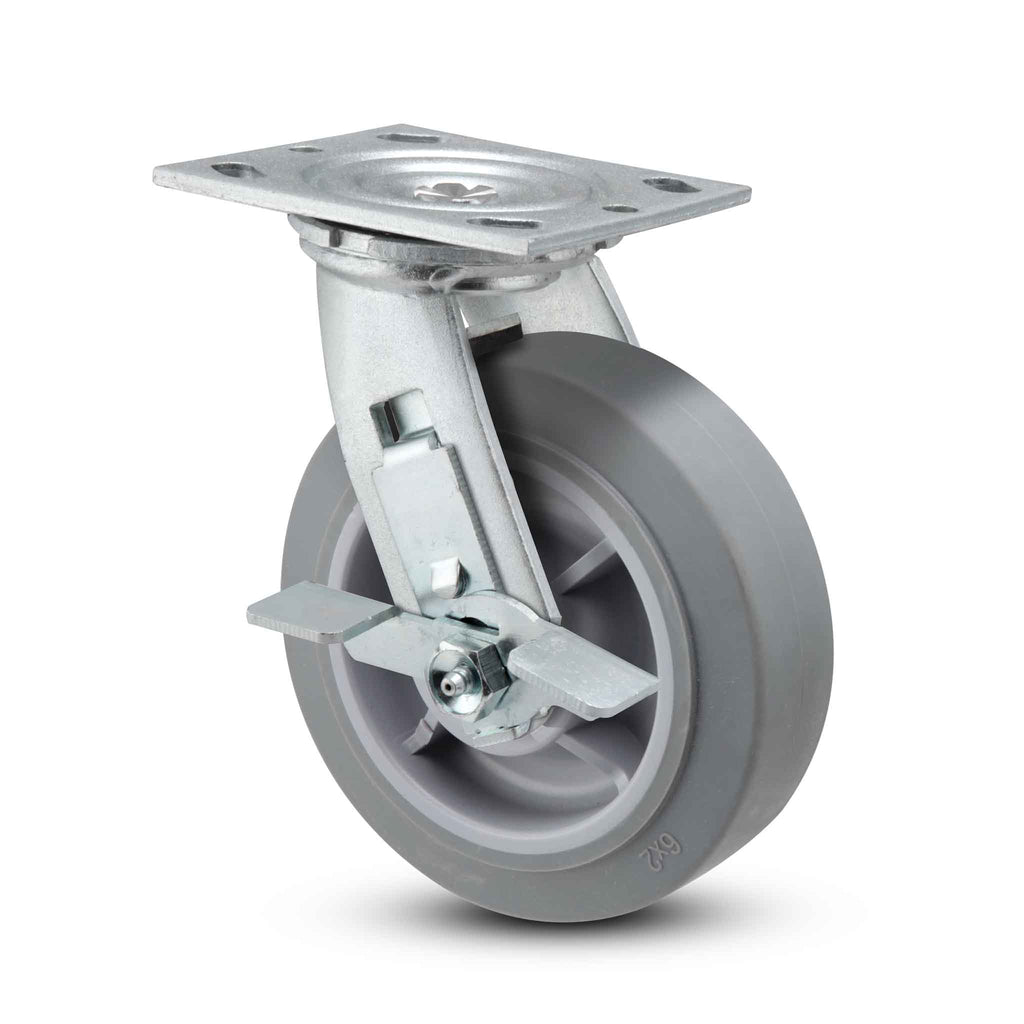

This swivel Pemco 4"x2" Thermo-Rubber (TPR) wheel plate caster with positive locking side brake (protected within leg and featuring thermoplastic brake grip) is ideal for applications where floor protection, quiet mobility, and/or vibration mitigation is desired (if vibration and equipment protection are top of your list, make sure to check out Xtra-Soft casters). Our USA-made Thermo-Rubber wheels are non-marking, smooth rolling with standard roller bearings, and resistant to most chemicals and oils–an overall versatile and economical wheel (for greater durability, step up to Thermo-Urethane). This popular line is competitively priced and features: 1/4" thick steel construction, 4"x4.5" top plate, dual ball bearing raceways, welded legs for strength, grease zerks in axle and raceway, RoHS compliant zinc plating for corrosion resistance, and a one-year warranty–this SKU is also NSF listed.

Part Number: 45TRR42S-TB
Series: 45 Series - 2" Wide (to 1250 lb/ea)
Caster Type: Swivel
Brake: Tread Lock
Load Capacity: 300 lb
Wheel Diameter: 4 in
Wheel Tread Width: 2 in
Wheel Description: Thermo-Rubber (Flat)
Wheel Color: Grey
Wheel Bearing: Roller
Wheel Profile: Flat Tread
Wheel Hardness: 90(+/-5) Shore A
Wheel Thread Guards: None
Raceway Type: Dual Ball Swivel Raceways For Smooth Swivel and Strength
Fastening: 4" x 4-1/2" top plate

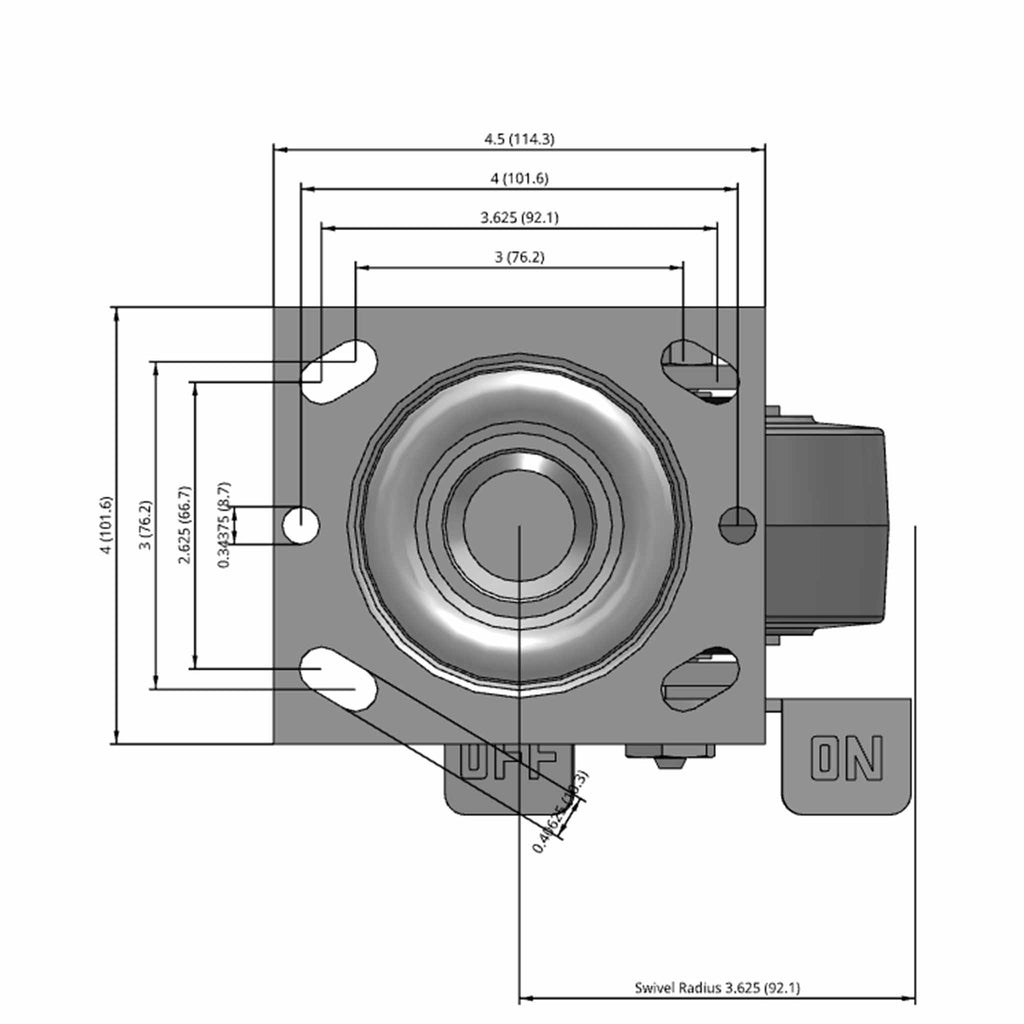

Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"
Mounting Height: 5.63 in
Swivel Radius: 3.63 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component

Note: datasheets are provided on our Caster Specialists division template (our sister store).
Use Download CAD (must select file type to enable download) or Download PDF datasheet buttons below to download our secure and native files.
